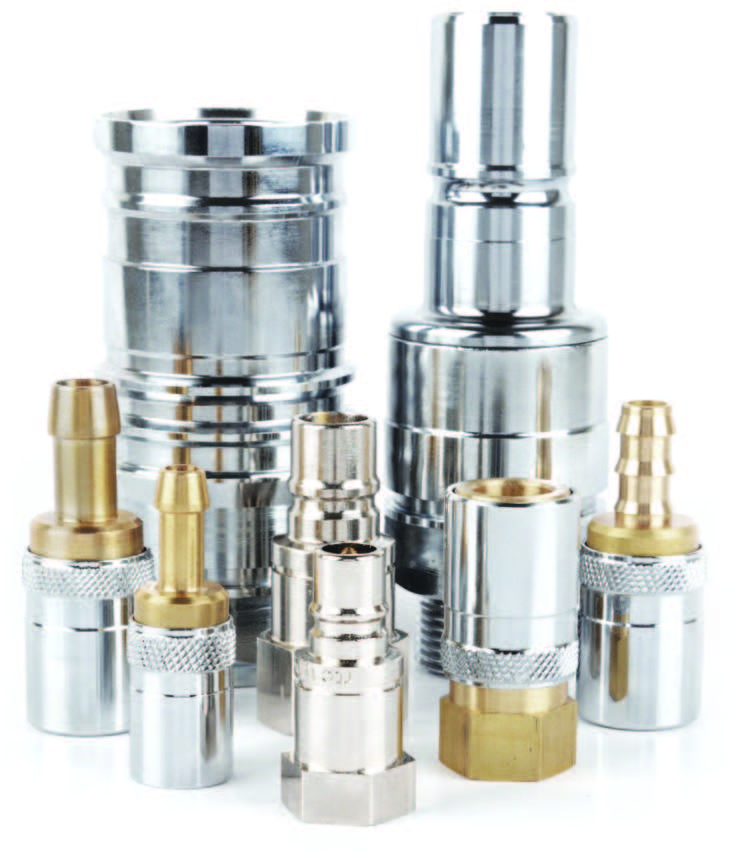

Engates Rápidos com Válvula Simples/Dupla para Água
|
|
| Area Of Usage |
Generally used in plastic injection molds coolant systems |
| Material |
Brass |
| Flow Diameter |
DNØ 06 - 09 - 10 - 12 - 16 - 20 - 25 - 38 mm |
| Temperature Range |
NBR (Nitrile) -20°C + 110°C (- 4°F + 230°F)
FKM (Viton) -20°C + 180°C (- 4°F + 356°F) |
| Pressure Range |
0 - 16 bar ( 0-230 PSI) |
| Valf Type |
Full Flow / Single Shut-off / Double Shut-off |
| Compatibality |
|
| Other Info |
- Safety feature of sleeve is available
- Clampless Hose Connection Profile
- High variance on extensions
- Recessed mounting possible |
|
